Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine

Shanghai Trintfar Intelligent Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

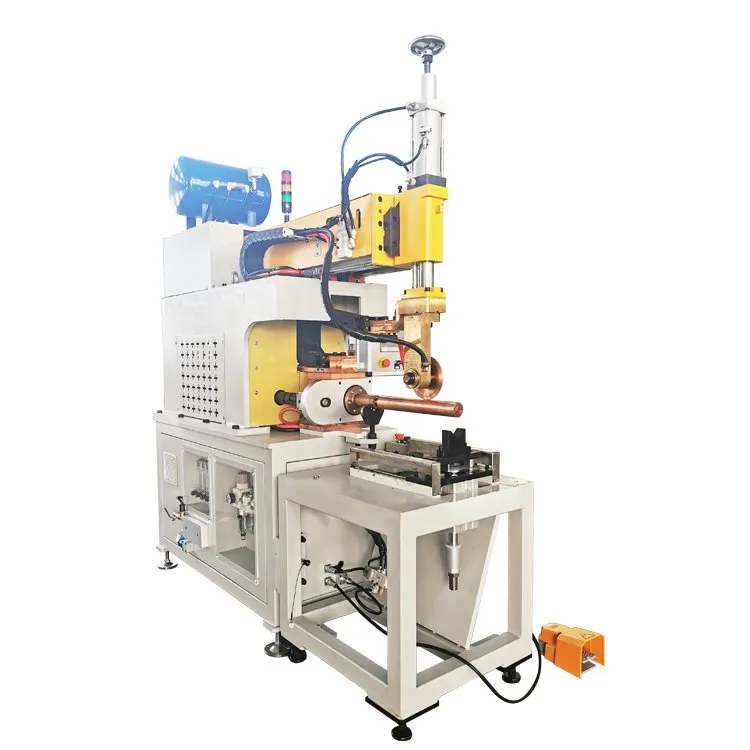

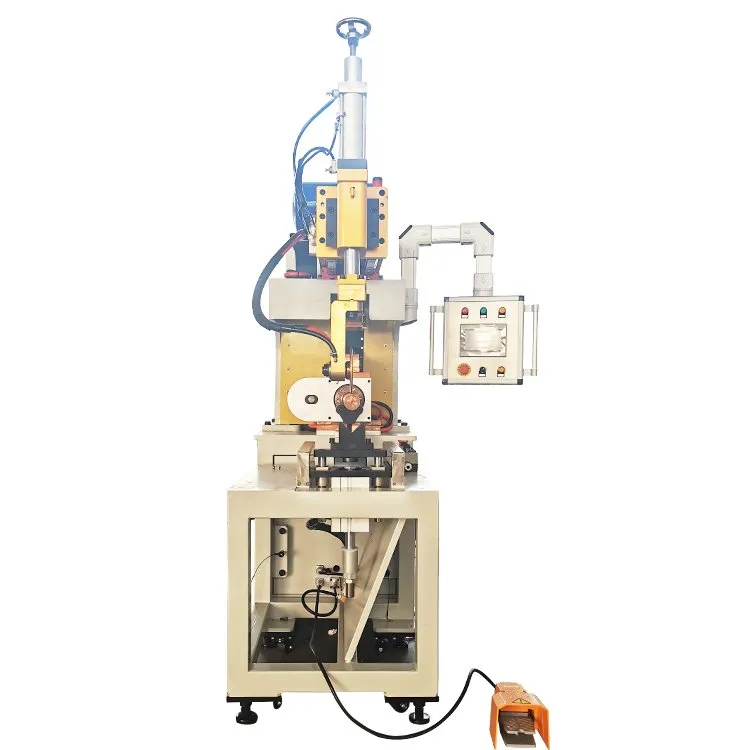

Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine

Brand Name : Trintfar

Certification : CE

Place of Origin : China

MOQ : 1

Price : 3000~10000

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 90~120

Packaging Details : Wooden brackets/wooden cases

type of cooling : Water Cooling

control mode : 5emi-Automatic

style : Vertical

electricity : AC

type : Continuous Seam Welder

transport package : Wooden Box

specification : 500kg

Application : Metal Mesh Welding

Reted Capacity : 75kVA

Voltage : 380V/220V

Welding Speed : 0.6-2m/Min

Color : Customized According Your Requirement

Power(W) : Adjustable

Contact Now

Product Description


Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine
Product Description
Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding MachineFilter Mesh Cylinder Strainer Tube Longitudinal Seam Welding MachineFilter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine
Features:
  • 3phase regulator controls the welding speed uniformly and without jerks.
  • Longitudinal and horizontal welding make it possible for various jobs and working conditions.
  • Robust structure capable to withstand heat and maintain welding performance.
  • The rotation conductance or silver axis tile provides excellent contact and reduces electrical energy loss.
  • Widely used in Household appliances,auto,and other metal working industries.
Item
Model
FN-50 FN-75 FN-100 FN-150 FN-200 FN-250
Rated capacity
KVA
50 75 100 150 200 250
Rated Primary voltage
V
380 380 380 380 380 380
Rated frequency
Hz
50/60 50/60 50/60 50/60 50/60 50/60
Maximum short current
A
13000 16000 18000 23000 26000 30000
Welding speed
M/min
0.6-2 0.6-2 0.6-2 0.6-2 0.6-2 0.6-2
Electrode
pressure

N
4700 6280 6280 12000 12000 12000
Motor power resource
V
3-380V 3-380V 3-380V 3-380V 3-380V 3-380V
Electrode stroke
mm
80 80 80 100 100 100
Welding capability
(Stainless steel)
mm
0.8+0.8 1.0+1.0 1.1+1.1 1.3+1.3 1.8+1.8 2.0+2.0
Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding MachineFilter Mesh Cylinder Strainer Tube Longitudinal Seam Welding MachineFilter Mesh Cylinder Strainer Tube Longitudinal Seam Welding MachineFilter Mesh Cylinder Strainer Tube Longitudinal Seam Welding MachineFilter Mesh Cylinder Strainer Tube Longitudinal Seam Welding MachineFilter Mesh Cylinder Strainer Tube Longitudinal Seam Welding MachineFilter Mesh Cylinder Strainer Tube Longitudinal Seam Welding MachineQ Are you a trading company or a factory?
A We are an integrated industry and trade, and have our own factory.

Q Where is your factory located?
A Our factory is located in Songjiang district, Shanghai of China. In addition, we also have factories in Dongguan and Ningbo.

Q Can you customize the machine?
A We support OEM/ODM service and can customize the machine according to your requirements.

Q What is the MOQ?
A According to the customer's requirements.

Q What are your services during the purchase process?
A Pre-sales: Visit the factory, Technical solutions and program design services, Proofing services, Sample testing services.
On-sales: Technical training, Installation and commissioning services.
After-sales: Free non-wearable parts, Repair service, Video technical support, Online remote guidance.


Q How long is your warranty period?
A We offer a one-year warranty.

Q What is the payment terms?
A We ship with full payment, and we can negotiate payment terms.

Q How long is the delivery time?
A Delivery time for standard machines: 7-15 working days
Delivery time for customized machines: According to the degree of customization, about 1-3 months

Q Can you provide samples?
A We provide sampling service, but you need to send us the sample by courier.
